Views: 0 Author: Site Editor Publish Time: 2026-06-01 Origin: Site
Wastewater treatment plants face constant battles against incoming debris. Did you know that premature equipment wear costs facilities millions of dollars annually? Preliminary treatment acts as the critical vanguard against this financial drain. Selecting between a fine screen vs coarse screen dictates your plant efficiency and downstream asset lifespan.
● Choosing between a fine screen vs coarse screen represents a balance between high-flow hydraulic capacity and strict particle removal precision.
● Coarse screens provide rugged, primary protection for pumps and heavy machinery by capturing large debris like rags, rocks, and branches.
● Fine screens offer the high-efficiency filtration required to safeguard advanced downstream processes like membrane bioreactors from micro-fibers and grease.
● Combining both technologies in a dual-stage screening channel minimizes total plant operational costs and prevents premature equipment failure.
The primary differentiator between these two systems lies in their clear opening sizes. Coarse screens typically feature apertures ranging from 6 mm to over 50 mm. They rely strictly on physical isolation to block large objects from entering the treatment train.
In contrast, fine screens feature opening sizes ranging from less than 1 mm up to 6 mm. Beyond simple physical blocking, fine screens often utilize the captured solids to create a temporary filter cake. This matting effect allows the system to filtrate particles even smaller than the actual mesh openings.
Feature | Coarse Screen | Fine Screen |
Aperture Size Range | 6 mm to 50+ mm | Less than 1 mm to 6 mm |
Primary Mechanism | Direct physical block | Physical block & matting filtration |
Common Materials | Heavy-duty stainless steel bars | Perforated plates, wedgewire, fine mesh |
Hydraulic Resistance | Minimal headloss | Higher potential headloss |
Because their opening sizes differ drastically, each screen targets a completely different profile of waste solids. Coarse bar screens capture large, heavy objects that enter municipal or industrial collections. They trap tree branches, large plastics, rocks, shop rags, and flushable wipes before they cause physical blockages.
Fine screens target smaller, more insidious debris. They catch hair, textile fibers, grease particles, fecal matter, and plastic micro-debris. These materials might pass easily through a coarse bar screen but wreak havoc on secondary treatment systems.
Hydraulic performance represents a major trade-off in the fine screen vs coarse screen debate. Coarse screens allow high-velocity flows to pass through with minimal resistance. This makes them highly stable during peak wet weather flows or sudden storm surges.
Fine screens create a larger restriction in the open channel. They generate higher headloss, which causes the water level to rise upstream of the screen. Fluid dynamics change rapidly during peak flows, requiring automated controls to manage the water level and prevent backing up or overflows.
Note: High headloss across fine screens can trigger automated bypass gates if peak wet weather flows exceed design parameters.
In a properly engineered wastewater treatment plant, these technologies work in a strict sequence rather than in isolation. Coarse screens act as the very first line of defense at the plant headworks. They protect the raw sewage pumps and the fine screens themselves.
Fine screens are positioned immediately downstream of the coarse screens, usually right before grit removal or primary clarification. Skipping the coarse screening stage accelerates fine screen blinding, leading to frequent mechanical failures and overflow conditions.
The Screenings Capture Rate (SCR) measures the efficiency of solid removal. Coarse screens have a relatively low SCR because they let small solids pass through. However, they are essential for protecting heavy machinery like raw sewage pumps and grit mixers.
Fine screens deliver a much higher SCR. They provide critical protection for advanced biological processes, specifically Membrane Bioreactors (MBRs) and Moving Bed Biofilm Reactors (MBBRs). Without fine screening, hair and fibers weave into the membrane modules, causing irreversible matting and devastating process efficiency.
The operational costs (OPEX) and maintenance demands differ heavily between the two systems. Coarse screens utilize mechanically simple rake arms or chains. They require minimal power and occasional lubrication, making them highly cost-effective to operate.
Fine screens have a more complex mechanical profile. They incorporate high-pressure wash-water spray bars, rotating brushes, and differential pressure sensors to combat blinding. This complexity results in higher energy consumption and demands more frequent operator attention.
Tip: Regularly monitor the wash-water pressure on your fine screens to prevent grease accumulation from cementing the delicate mesh apertures.
Coarse screening serves as the muscle of the headworks department. Its primary function is to shield vulnerable downstream assets from catastrophic mechanical failure. When heavy debris like timber or rocks enters the plant, a coarse screen stops it before it reaches the impellers of expensive raw sewage pumps or jams the grit collection flights.
Facilities select coarse screens based on channel depth and debris load. Trash rakes manage the heaviest loads at large municipal intakes or stormwater stations. Mechanical bar screens, including climber types, front-cleaned, and back-cleaned designs, are the industry standards for continuous operation. Manual trash racks are generally reserved for small-scale plants or as emergency bypass channels.
There are scenarios where a plant might only utilize coarse screening. Combined sewer overflows (CSOs) often require heavy-duty coarse screens to handle massive stormwater volumes without blinding. Heavy industrial primary intakes, like those at steel mills or power plants, use them to filter large river debris. Stormwater pumping stations also rely heavily on them to protect high-volume pumps during flood events.
Modern wastewater facilities increasingly rely on advanced biological systems to meet strict effluent guidelines. Systems like MBRs, sequencing batch reactors (SBRs), and integrated fixed-film activated sludge (IFAS) processes cannot tolerate hair or micro-debris. Fine screening has evolved from an optional upgrade to a strict mandate to protect these delicate synthetic membranes and plastic biofilm carriers.

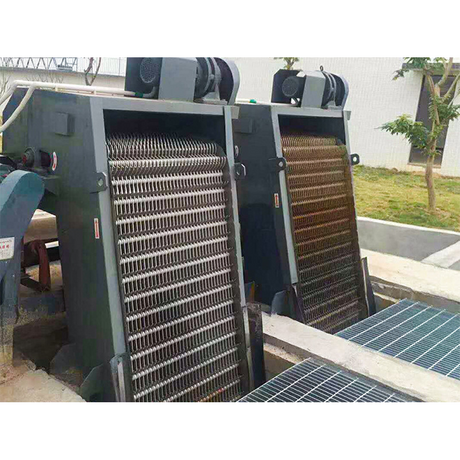

Fine screens come in several engineering configurations to fit different plant layouts. Rotary drum screens excel in handling high organic loads within a compact physical footprint. Step screens lift solids incrementally using alternating steps, providing excellent self-cleaning action. Center-flow band screens force all water through the screen panels, preventing any debris from bypassing around the seals.
Fats, Oils, and Grease (FOG) represent the greatest operational challenge for fine screening systems. When grease cools, it forms a sticky layer over fine apertures, causing rapid blinding. Facilities mitigate this by utilizing continuous brush systems paired with hot-water wash sprays. Some plants also dose specialized chemical cleaners to dissolve grease accumulations on a set schedule.
Engineers must analyze the specific characteristics of the incoming influent before choosing a system. Municipal sewage contains a high volume of hair and consumer wipes, demanding robust fine screening. Industrial effluents vary wildly; a pulp and paper mill requires fine screens to capture wood fibers, while a heavy chemical plant may only need a coarse bar screen. Seasonal shifts, like autumn leaves or heavy spring runoff, also heavily impact screen performance.
The sensitivity of your downstream treatment assets provides a clear roadmap for screening selection. If your facility utilizes standard conventional activated sludge with large clarifiers, a well-designed coarse screen paired with a medium screen may suffice. However, if you plan to implement advanced microfiltration or ultrafiltration membranes, ultra-fine screening with a 1 mm to 2 mm aperture is non-negotiable to protect those assets.
Retrofitting an existing facility introduces unique spatial challenges. Coarse bar screens often require significant headroom for the mechanical rake mechanism to lift debris out of deep channels. Fine screens, like rotary drums, might fit into a smaller footprint but often require specific channel geometry and water depth to maintain proper hydraulic flow profiles. Engineers must balance channel width, depth, and overhead clearance during upgrades.
The most efficient modern headworks designs do not choose between a fine screen vs coarse screen; they deploy them in series. This dual-stage configuration creates an ideal synergy. The coarse screen removes the large, punishing objects, allowing the fine screen to focus exclusively on separating micro-solids without facing mechanical damage. This arrangement drastically reduces the total lifecycle cost of the facility.
Operating two screening stages in a single channel requires careful hydraulic engineering. Each stage creates a drop in water level, meaning the total headloss multiplies. Designers utilize automated flow control gates and variable-frequency drives on the screen motors. These tools balance hydraulic levels when both screens operate at peak capacity during heavy rain events, preventing upstream sewer backups.
A mid-sized municipal facility faced constant pump clogs and membrane fouling, leading to excessive maintenance costs. The plant operated a single 20 mm coarse bar screen. After upgrading to a dual-stage system by installing a 6 mm coarse screen followed by a 2 mm fine drum screen, the plant achieved remarkable results. They reduced downstream pump maintenance costs by 40% and extended the lifespan of their membrane modules significantly (Data verified by plant operational logs).
The material captured by each screen type requires different handling procedures due to its composition. Coarse screenings consist primarily of inorganic, inert debris like plastics and rocks, which drain easily. Fine screenings capture a high volume of organic matter and fecal material. This organic mass requires intensive washing in a screenings washer-compactor to return the organic carbon back to the treatment process and reduce weight.
Fine screening rooms present much higher odor control challenges than coarse screen areas. Because fine screens capture large amounts of volatile organic solids and fecal matter, they release high concentrations of hydrogen sulfide ($H_2S$) and ammonia gases. These rooms require advanced ventilation systems, sealed equipment covers, and active carbon scrubbers to maintain safe working conditions and prevent community complaints.
Note: Enclosing fine screening equipment is critical not only for odor control but also to protect electronic components from corrosive sewer gases.
Landfills impose strict regulations on the moisture and organic content of waste material. Untreated fine screenings are heavy, wet, and foul-smelling, leading to high haulage fees and tipping penalties. Utilizing high-efficiency screw presses and compactors reduces the total volume of screenings by up to 50% and increases the dry solids content, making disposal more economical and environmentally compliant.
The integration of smart technology is redefining headworks operations. Instead of running on simple fixed timers, modern screens utilize differential pressure sensors combined with AI camera monitoring. These systems evaluate the actual debris accumulation on the screen face in real time. The AI automatically adjusts the rake speed or backwash cycle frequency, minimizing energy use and mechanical wear.
Wastewater headworks represent an incredibly corrosive environment due to moisture and hydrogen sulfide gas. Manufacturers are shifting away from traditional painted carbon steel. Modern fine and coarse screens increasingly feature corrosion-resistant polymers and duplex stainless steels, which offer superior tensile strength and a much longer operational lifespan.
With sustainability driving modern engineering, innovations in fine screen design focus on reducing resource consumption. New self-cleaning fine screens utilize treated plant effluent for their backwash spray bars instead of consuming expensive potable fresh water. This closed-loop approach lowers operational costs and supports facility water conservation goals.
Understanding the differences between a fine screen vs coarse screen helps facilities optimize their preliminary treatment setup. Coarse screens deliver heavy-duty protection against large debris, while fine screens offer precision removal to safeguard advanced downstream biological processes. Implementing high-quality equipment from an experienced manufacturer like AOTENG ensures your facility maximizes operational efficiency, protects valuable downstream assets, and maintains stable hydraulic performance across all flow conditions.
A: A coarse screen uses openings larger than 6 mm to catch large debris, whereas a fine screen uses apertures under 6 mm for micro-solids.
A: Using a fine screen vs coarse screen combination provides a dual-stage defense that optimizes flow and protects sensitive downstream membranes.
A: In a fine screen vs coarse screen comparison, fine screens require more maintenance due to wash-water systems needed to prevent grease blinding.
A: A fine screen vs coarse screen analysis shows that fine screens create higher headloss because their small openings restrict water flow more.
