Plant operators and engineers face a critical transition phase today. You must move from preliminary research to final equipment specification for tertiary treatment. You have to balance strict Total Suspended Solids (TSS) and phosphorus discharge limits. Facility footprint constraints complicate this process even further. Long-term reliability demands careful planning and objective mechanical analysis. A well-specified rotary disc filter optimizes floor space and hydraulic throughput dramatically. Conversely, an improperly sized unit causes chronic backwash inefficiencies and premature media wear. We will explore how to map regulatory requirements to specific hardware dimensions. You will learn how to evaluate different media types effectively. We will assess mechanical reliability for continuous municipal operations. Finally, you will discover how to plan for real-world maintenance risks before installation begins. This guide provides actionable steps for a successful equipment upgrade.
Successful facility upgrades begin with clear success criteria. You cannot specify hardware without defining the operational boundaries first. This requires a thorough analysis of compliance, hydraulics, and physical space.
Future discharge limits dictate your immediate technology choices. You must map anticipated TSS, BOD, and phosphorus limits to specific micron ratings. In the United States, Title 22 compliance often serves as the gold standard for water reuse. Meeting these stringent reuse standards typically requires specialized tertiary filtration equipment. You need to know your exact effluent targets. Specifying a 5-micron cloth when a 20-micron cloth meets regulations only wastes energy. It forces the system to backwash more frequently than necessary.
Hydraulic profiling prevents catastrophic bypass events during wet weather. You must establish your peak hourly flow (PHF) versus your average daily flow (ADF). Average flows dictate normal operation, but peak flows test system limits. If you only size equipment for ADF, hydraulic bottlenecks will occur. Heavy rainfall increases plant inflow rapidly. Your filtration system must handle these hydraulic surges without overflowing. Conservative hydraulic models protect downstream receiving waters from untreated biological carryover.
Municipal plants rarely have unlimited expansion space. Assessing retrofitting realities is crucial. Existing concrete basins or building footprints often cannot expand. Pouring new concrete adds massive capital expenses to a project. Disc filters provide a distinct advantage here. They fit seamlessly into abandoned sand filter basins or old chlorine contact chambers. You must measure the exact dimensions of your available infrastructure. Compare these measurements against the operational clearances required by the manufacturer.
Sustainability requires strict energy and resource thresholds. Set maximum allowable limits for backwash water consumption early in the design phase. A well-designed system typically consumes less than 3% of the total forward flow. If it consumes more, your secondary treatment process suffers from excessive return loads. Electrical draw also matters. You must evaluate the horsepower of drive motors and backwash pumps. Establish clear caps on power usage to ensure the plant remains financially viable.
Engineers must justify their technology choices. Comparing disc systems against alternative filtration methods validates your final decision. Each technology serves specific applications better than others.

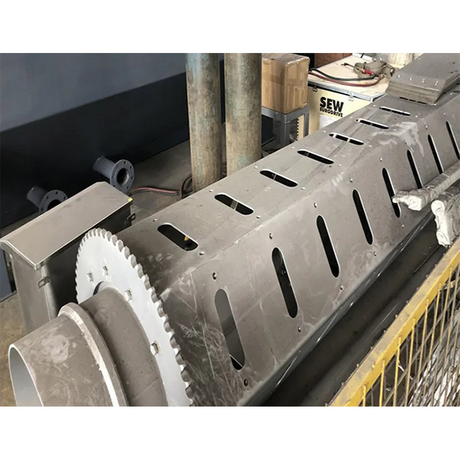

Drum filters and disc filters operate on similar gravity principles. However, their physical geometry differs significantly. A drum filter uses the outer surface of a single cylinder. This limits the total filtration area. Disc configurations feature multiple pleated or flat discs mounted on a central tube. This provides a significantly higher submerged surface area per square foot of floor space. Drum filters remain mechanically simpler. Yet, they lack the modular panel replacement advantage of disc systems. If a drum mesh tears, repairs are difficult. If a disc panel tears, you can swap it quickly.
Understanding internal pressure dynamics clarifies equipment capabilities. Municipal plants typically use gravity or hydrostatic disc filters. These units excel at high-volume, low-solids tertiary polishing. The natural water level difference drives the filtration process. Rotary vacuum disc filters operate differently. They use powerful vacuum pumps to pull liquid through the media. Industries reserve vacuum filters for heavy sludge dewatering or mining applications. They do not belong in municipal tertiary polishing applications.
Sand filters dominated municipal wastewater historically. However, they possess severe hydraulic drawbacks. Evaluating head loss realities highlights these flaws. Sand filters often generate excessive head loss. They frequently require intermediate pumping stations to lift water into the filter beds. Pumping water requires massive amounts of electricity. Disc filters typically operate with a minimal 300–500 mm of head loss. This low profile allows water to flow through the plant via gravity. It eliminates the need for intermediate pumping stages entirely.
Filtration Technology Comparison
| Technology Type | Footprint Efficiency | Typical Head Loss | Ideal Application |
|---|---|---|---|
| Gravity Disc Filter | High | 300 - 500 mm | Space-constrained municipal polishing |
| Rotary Drum Filter | Moderate | 200 - 400 mm | Small flows, simple mechanical needs |
| Deep Bed Sand Filter | Low | 1000+ mm | Unrestricted space, high chemical dosing |
Making a reliable disc filter selection requires deep technical evaluation. You must scrutinize media materials, loading capacities, and mechanical components.
Filter media acts as the heart of the system. You must evaluate woven versus pile cloth media. Woven mesh provides absolute surface filtration. It acts like a strict physical sieve. Pile cloth provides depth filtration. It traps particles within its fuzzy fibers, offering better solids retention under varying loads. Matching pore size to effluent targets is critical. Typical sizes range from 10μm to 30μm. Do not artificially over-specify pore sizes. Choosing a 10μm cloth for a 30μm requirement drives up backwash frequency. This wastes water and accelerates media degradation.
Loading rates dictate system stability. You must calculate maximum safe loading rates based on upstream secondary treatment stability. Do not assume ideal clarifier performance. Clarifiers occasionally fail. You must establish safety factors for biological floc carryover scenarios.
If your SLR calculations ignore upset conditions, the filter will blind rapidly. The system will bypass untreated water directly into the environment.
The cleaning mechanism determines continuous performance. Assess static versus oscillating spray header designs. Static headers require more nozzles but have fewer moving parts. Oscillating headers use fewer nozzles but sweep across the entire media surface. Pump placement also matters immensely. Submersible pumps live inside the filtered water tank. They save space but are difficult to service. Dry pit pumps sit outside the tank. They require more floor space but allow operators to perform maintenance without getting wet. Ensure the system provides adequate pressure for effective media cleaning.
The central drum must rotate reliably. Evaluate chain-driven versus direct-drive rotational systems. Chain drives are common but require regular tensioning and lubrication. Direct-drive systems use fewer wear parts. They offer better lifecycle durability but cost more initially. Control logic heavily influences efficiency. Avoid strictly time-based backwash initiation. It washes the cloth even when clean. Use level-differential logic instead. As solids accumulate, upstream water levels rise. This head loss triggers the backwash cycle automatically. It cleans the media only when absolutely necessary.
Theoretical designs often ignore daily operational struggles. You must address maintenance realities before you finalize the specification. Operators need equipment they can service safely and efficiently.
Media fouling is inevitable in municipal wastewater. You must identify proper chemical cleaning intervals. Biological fouling creates a slippery, organic slime on the cloth. Routine hypochlorite washes manage this biological blinding effectively. Mineral scaling presents a different challenge. Calcium and iron deposits harden the cloth fibers. Acid washes break down these stubborn mineral scales. Ask vendors for their recommended cleaning procedures. Ensure your facility can safely store and handle the required cleaning chemicals.
Backwash systems rely on high-pressure water streams. If spray nozzles clog, the media remains dirty. The filter will eventually fail. You must mitigate the risk of backwash nozzle blockages. The best defense is installing automatic self-cleaning strainers. Place these strainers directly on the backwash water supply line. They catch small debris before it reaches the fine spray orifices. This simple addition prevents hours of tedious manual nozzle picking.
Equipment breaks at the worst possible times. Evaluating panel replacement ergonomics is crucial for operator safety. Consider how long it takes a single operator to isolate and swap a damaged filter segment.
Modular designs empower operators. They allow quick fixes that maintain compliance without stressing the maintenance crew.
Northern climates pose severe freezing risks. Water spraying through the air drops in temperature rapidly. Address the need for enclosures or building heating early in the design phase. Exposed filter discs and spray bars will freeze solid during winter operations. Ice tears filter cloth instantly. You must install insulated fiberglass covers. In extreme environments, you should place the entire filtration system inside a climate-controlled building. Ignoring cold weather operations guarantees wintertime compliance failures.
Selecting the right manufacturer is just as important as selecting the right technology. You need a partner who supports their product long after commissioning. A reliable municipal wastewater filter project requires rigorous vetting.
Theoretical desktop sizing is largely insufficient. Wastewater characteristics vary wildly between different municipalities. You must mandate pilot studies to prove vendor claims. Structure a 30-to-60-day on-site pilot program. This duration allows you to stress-test the equipment under actual diurnal variations. It exposes the filter to morning flow peaks and nighttime lulls. Capture a wet weather event if possible. Pilot data reveals site-specific solids loading realities. It also determines precise chemical dosing requirements for optimal cleaning.
Global supply chain disruptions cripple wastewater facilities. You must verify the domestic availability of proprietary replacement parts. Ask vendors where they stock custom drive sprockets and specialized cloth panels. If a primary drive shaft breaks, waiting six weeks for overseas shipping is unacceptable. Prioritize vendors with robust regional distribution networks. Quick access to spare parts minimizes downtime risk. It ensures your plant remains compliant during emergency breakdowns.
Sales brochures only tell half the story. Sourcing unvarnished feedback from existing operators reveals the truth. Request a list of reference installations from shortlisted vendors. Focus on similar-sized facilities treating similar wastewater profiles. Call these operators directly. Ask them hard questions about actual uptime. Inquire about the vendor's emergency support responsiveness. Find out how the equipment performs three years after installation. Real-world operator feedback is the most valuable tool in your evaluation process.
A successful rotary disc filter specification is rooted in conservative hydraulic loading assumptions. It requires a clear-eyed view of long-term maintenance needs and operator safety. You must balance regulatory compliance against physical space constraints meticulously. Prioritizing modularity and ease of operator access reduces operational risk significantly. Verifiable pilot data ensures the equipment handles site-specific challenges without failing. We encourage engineering teams to formalize their site-specific influent data immediately. Request targeted, data-backed proposals from shortlisted manufacturers rather than relying on generic product brochures. Thorough preparation guarantees a resilient tertiary treatment upgrade.
A: The lifespan usually ranges from 3 to 5 years. This depends heavily on solids loading, UV exposure, and chemical cleaning frequency. Woven and pile materials have different degradation curves. Proper maintenance and timely backwashing significantly extend the functional life of any wastewater disc filter media.
A: Industry standard targets 1% to 3% of total hydraulic throughput. Consumption spikes during upset conditions or if the media is improperly sized. Keeping this ratio low prevents overloading the upstream secondary biological processes with excessive return flows.
A: No. They are designed strictly as tertiary filtration equipment. High suspended solids, typically exceeding 50-100 mg/L, will cause rapid blinding. Using them for primary clarification leads to immediate system failure and continuous backwashing loops.
A: The calculation is driven by the Peak Hourly Flow (PHF) divided by the allowable hydraulic loading rate of the specific micron-rated cloth. You must also add redundant capacity for maintenance, commonly referred to as N+1 sizing, to ensure uninterrupted compliance.
A: The accumulation of suspended solids on the filter media creates a physical hydraulic barrier. Differential level sensors measure this rising water level on the influent side. Once it hits a predetermined setpoint, it automatically triggers the backwash cycle.
