A single plastic bottle or a stray rag can cause thousands of dollars in mechanical damage and shut down an entire municipal treatment plant. This guide explores why choosing the right screens for sewage treatment is vital for plant longevity. You will learn how different configurations solve operational challenges and optimize system performance.
● Deploying heavy-duty screens for sewage treatment prevents catastrophic downstream pump clogging and internal piping blockages.
● Fine screens protect advanced Membrane Bio-Reactors (MBR) from fatal hair and fiber wrapping while optimizing oxygen uptake.
● Implementing automated mechanical screens significantly reduces manual maintenance expenses and chemical coagulant consumption.
Screening systems serve as the critical frontline defense for any wastewater facility. They capture volatile physical objects before they enter vulnerable processing zones. Without this initial barrier, the entire facility faces severe operational risks.
Large debris like rags, wood, plastic bags, and wipes pose an immediate threat to rotating equipment. When these items bypass preliminary treatment, they bind around pump impellers. This results in motor burnout and expensive downtime.
Effective screen installations eliminate heavy debris to stop cavitation and mechanical wear. This safeguards specialized rotating machinery and shields downstream piping networks from dense, internal physical blockages.
Modern biological treatment blocks rely on stable, uninterrupted fluid dynamics. Fine debris can wrap around membrane modules in Membrane Bio-Reactors (MBR), causing irreversible fiber damage.
In Moving Bed Biofilm Reactors (MBBR), unscreened waste causes medium-blindness by covering active carrier surfaces. Implementing high-efficiency screens ensures only soluble organic matter enters these tanks. This optimizes the Oxygen Uptake Rate (OUR) and reduces the energy required for aeration.
Investing in premium preliminary screening leads to immediate operational savings. Manual labor for unclogging downstream valves and cleaning pumps is heavily reduced.
Early removal of inert solids also lowers the physical load on secondary clarifier scrapers and blowers. This improves energy efficiency across the facility. Cleaner influent requires smaller dosages of chemical coagulants and flocculants, which lowers monthly utility bills.
Tip: Quantify your current manual pump-cleaning hours; upgrading to an automated front-clean screen typically reduces these labor costs by over 70%.
Wastewater plants face strict local and global environmental mandates like ISO and CE standards. Effective screening minimizes the danger of bypass events and accidental overflows during heavy storm surges.
By capturing macro-pollutants early, facilities prevent public environmental contamination. This reliable upstream performance supports the recovery of high-purity water for agricultural and industrial reuse.
Extracting clean organic matter early allows plants to divert nutrient-rich streams into anaerobic digesters for biogas production. Efficient screens separate inert trash from primary sludge to enhance the quality of final dewatered biosolids.
This transformation converts hazardous waste into marketable fertilizer. It is far cheaper to dump clean screenings at a local landfill than to process contaminated, toxic sludge.
Screening machinery is categorized by opening size and the method used to remove trapped debris. Each variant targets specific solids within the treatment stream.
Coarse screens feature physical openings ranging from 6mm to over 50mm. They sit at the very front of the influent channel to capture heavy floating objects like tree branches, large rocks, and plastics. These heavy-duty units handle massive hydraulic flows while experiencing minimal physical head loss.
Fine screens operate with precise apertures between 0.25mm and 6mm. They trap tiny suspended solids, hairs, and synthetic fibers that pass right through coarse bars. Fine units are essential safeguards placed directly ahead of sensitive MBR systems to prevent membrane fouling.
Manual screens feature low initial capital costs but carry high operational risks. They demand constant labor and prone to clogging, which can cause sudden channel overflows during storm events.
In contrast, mechanical screens use automated raking arms controlled by differential pressure sensors or timers. They offer excellent reliability and ensure continuous operation without operator intervention.
Screen Category | Aperture Range | Primary Target Material | Typical Channel Location |
Coarse Screens | 6mm to >50mm | Branches, rocks, plastic bottles, large rags | Main Influent Headworks |
Fine Screens | 0.25mm to 6mm | Hair, small fibers, paper fragments, grit | Post-Coarse / Pre-MBR |

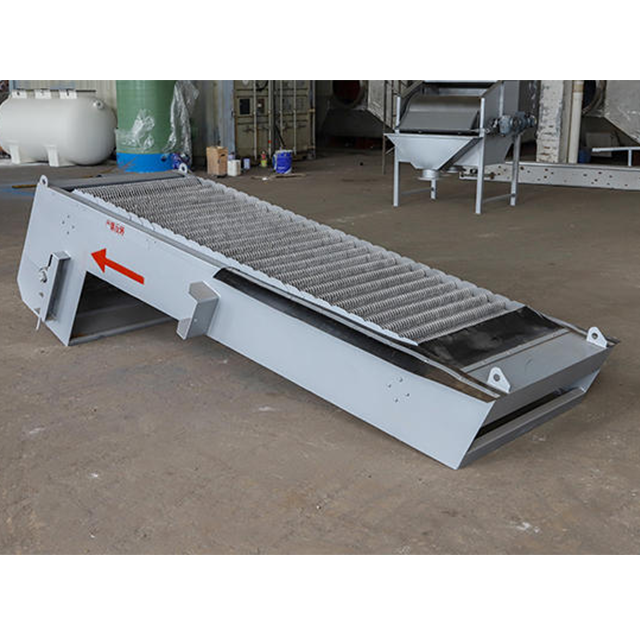

Mechanical bar screens provide reliable, high-capacity debris removal at the front end of municipal and industrial plants.
These systems consist of a series of parallel metal bars anchored inside the wastewater channel. Debris collects on the bar rack while liquid flows through.
An automated mechanical rake travels along the bars, lifts the trapped solids out of the stream, and drops them into a disposal chute.
Multi-rake designs utilize several cleaning bars mounted onto a continuous drive chain. This setup enables high cleaning frequencies that prevent blinding during intense storm surges. The rapid cycle times protect the structural integrity of the screen frame from high hydraulic pressure differentials.
Mechanical bar screens excel in municipal headworks processing raw community waste. They are equally effective in heavy industrial applications, including textile facilities, pulp and paper mills, and manufacturing plants with high solid waste loads.
Rotary systems use continuous rotational motion to provide fine filtration for high-solids streams.
Wastewater enters the interior of a rotating mesh drum. The liquid drains through the screen apertures, leaving solid particles trapped on the inner surface. Internal screw flights or high-pressure spray bars continuously flush these solids into a collection hopper. This design provides a compact physical footprint and continuous self-cleaning action.
Rotary disc filters feature vertical disks lined with ultra-fine cloth or mesh. Positioned after biological clarification, they serve as a tertiary treatment step to polish effluent. These systems remove fine suspended solids while maintaining low backwash water consumption.
Rotary screens are highly effective in food and beverage applications, such as slaughterhouses, breweries, and fruit processing plants. They capture valuable organic byproducts like fats, skins, and grains before they break down. This allows facilities to recover and repurpose materials that would otherwise clog downstream systems.
Tip: In high-grease food applications, look for rotary screens equipped with hot-water backwash systems to prevent fat accumulation on the mesh.
Step screens use a unique mechanical movement to lift solids, making them ideal for facilities with limited space.
This equipment uses two sets of stepped plates: a stationary set and a movable set. The movable plates rotate in a stepping motion to lift accumulated solids up the staircase-like profile. As debris collects on the steps, it forms a temporary mat that acts as an extra filter layer to capture smaller particles without disrupting flow.
A key engineering benefit of step screens is that all drive chains, linkages, and bearings remain above the water line. Keeping these moving parts out of the corrosive wastewater channel significantly reduces component wear and extends system life.
Step screens are an excellent choice for upgrading older treatment facilities. Their compact design allows them to fit easily into existing concrete channels. This permits plants to boost their fine-screening capacity without undertaking expensive civil engineering modifications.
Choosing the correct equipment requires balancing water characteristics against long-term operational costs.
Different configurations offer distinct balances of capture efficiency, footprint, and cost.
● Mechanical Bar Screens: Deliver an intermediate Screenings Capture Ratio (SCR) with low hydraulic head loss. They require a larger footprint but have low initial capital costs.
● Rotary Drum Screens: Provide an excellent SCR and a very compact footprint. They have moderate head loss and require a higher initial investment.
● Step Screens: Deliver a high SCR through debris matting. They feature a compact footprint and low maintenance costs, with a moderate upfront investment.
Influent composition determines the ideal equipment selection. High-grease industrial streams are best handled by self-cleaning rotary drum screens. Municipal channels carrying heavy macro-solids require robust mechanical bar screens.
Corrosive environments with extreme pH levels or high temperatures demand premium materials, such as 304 or 316L stainless steel, to prevent premature structural failure.
Cutting corners on the preliminary screening phase to save on initial capital expenditure is a common mistake. Cheap, under-designed systems lead to frequent downstream equipment failures and high maintenance costs. Investing in automated, high-quality screens provides a strong return on investment by protecting downstream assets and lowering long-term operating costs.
Integrating modern digital controls and complementary treatment stages maximizes the efficiency of your screening infrastructure.
Connecting ultrasonic level sensors to your screening controls allows the system to adjust raking speeds based on real-time head loss. IoT-enabled controllers monitor mechanical strain and send predictive maintenance alerts to operators. This enables teams to address wear before a costly mechanical breakdown occurs.
A complete pretreatment system combines mechanical screens, vortex grit chambers, and Dissolved Air Flotation (DAF) units. The screens remove large debris, the vortex chambers extract abrasive sand, and the DAF units separate fats, oils, and grease (FOG). This combined approach protects downstream biological treatment blocks from abrasive wear and chemical blinding.
The wastewater industry is increasingly adopting decentralized, plug-and-play containerized pretreatment systems. These pre-engineered skids combine screening, grit removal, and grease separation into a single transportable unit. They are ideal for expanding industrial zones or remote communities, as they eliminate the need for lengthy onsite construction.
Industrial and municipal facilities must select effective screens for sewage treatment to protect downstream assets and maintain process efficiency. Premium automated systems cut operational expenses, ensure regulatory compliance, and support resource recovery. High-performance separation systems from AOTENG provide advanced, durable screening solutions that optimize plant longevity and deliver reliable, long-term processing value.
A: They protect downstream pumps and MBR systems from clogging, reducing operational costs and preventing plant downtime.
A: Coarse screens (6mm+) remove large debris, while fine screens (under 6mm) protect advanced downstream biological filters.
A: Mechanical units automate debris removal using sensors, which lowers labor costs and prevents overflows during storms.
A: They keep all mechanical drive components above the wastewater level, minimizing corrosion and component wear.
