Specifying equipment for municipal and industrial treatment plants carries extremely high stakes. Undersizing a unit inevitably leads to catastrophic clogging and overflow. Poor material selection quickly accelerates corrosion and guarantees extensive plant downtime. You need a reliable technical blueprint to evaluate and select the correct machinery. This comprehensive guide provides exactly that. We will explore how to match equipment design with complex, unpredictable sludge profiles. You will learn to navigate the structural choices between shafted and shaftless setups. A successful design strictly balances upfront engineering with daily operational realities. It uniquely addresses the physical challenges of high-moisture, sticky, and intensely abrasive sludge. By reading this guide, you will master the core engineering parameters needed to build an optimized wastewater handling system. We outline everything from trough selection to volatile gas containment. These practical insights will help you finalize your technical data sheets. Ultimately, you can clearly specify the perfect machinery before issuing any requests for proposals.
Engineers must thoroughly evaluate the exact material flowing through the facility. Selecting solids conveying equipment rarely succeeds using a basic, one-size-fits-all approach. Municipal and industrial facilities generate diverse waste streams. Each stream exhibits unique physical properties.
You must differentiate between primary, secondary, and dewatered sludge. Primary sludge often contains heavy, unpredictable solids. Secondary sludge features a biological makeup and holds excess water tightly. Dewatered sludge behaves entirely differently. As the dry solids (DS) percentage fluctuates, material viscosity shifts dramatically. High-moisture sludge flows easily but splashes aggressively. Sludge approaching 20 to 30 percent DS becomes incredibly sticky. It adheres to metal surfaces and resists forward movement. At 40 percent DS and above, the material turns crumbly and generates high friction. You must specify machinery capable of handling the highest expected viscosity.
Wastewater streams constantly introduce abrasive grit and unpredictable screenings. Grit functions like liquid sandpaper. It systematically grinds away carbon steel troughs and tears apart flighting. Unpredictable foreign objects also enter the process flow. Rags, wet wipes, and plastic debris frequently bypass headworks screens. These items rapidly wrap around moving components. They create massive blockages deep inside the processing line. You must map out the expected volume of these abrasives. This mapping dictates liner thickness and structural durability.
Volumetric capacity requirements define your fundamental success criteria. Do not base calculations solely on average daily flows. You must evaluate peak load scenarios. Stormwater surges drastically increase processing demands. Next, outline the operational duty cycle.

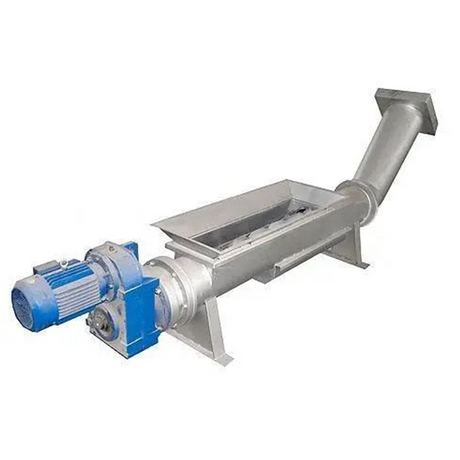

The most critical mechanical choice involves the center pipe. Should your sludge screw conveyor feature a central shaft or utilize a shaftless spiral? This single decision impacts overall reliability more than any other factor.
Modern treatment plants overwhelmingly favor shaftless designs for wet, heterogeneous materials. Eliminating the center pipe completely prevents ragging. Stringy materials like wipes and hair have nothing to wrap around. They simply travel forward inside the spiral. This unobstructed path prevents catastrophic clogging. You can safely move highly viscous, sticky sludge without bridging. Furthermore, shaftless configurations offer superior fill-rate capabilities. The open center space accommodates more volume per revolution. They easily achieve trough capacities of 40 to 50 percent. This high fill rate maximizes operational efficiency while keeping RPMs low.
Shafted units still hold significant engineering value in specific scenarios. You must use a center shaft when transporting highly abrasive but uniform materials. Dry bulk chemicals, lime, and separated grit fall into this category. The center pipe provides massive structural rigidity. This rigidity allows shafted units to span exceptionally long distances without sagging. They also excel on steep inclines or vertical lifts where shaftless spirals might compress. However, shafted units introduce serious maintenance risks in wet environments. Long spans require intermediate hanger bearings to support the pipe. Submerging these bearings in corrosive, gritty wastewater guarantees rapid failure. Servicing these bearings requires confined space entry and intense labor.
Engineers should follow a strict shortlisting logic when evaluating structural types.
A precise screw conveyor specification relies entirely on exact mathematical parameters. Guesswork leads to immediate operational failure.
Pitch refers to the distance between two consecutive flights on the spiral. Standard pitch equals the outside diameter of the screw. Most horizontal applications utilize standard pitch successfully. However, changing angles demands changing pitch. As you elevate the equipment, gravity pulls material backward over the flights. This phenomenon is called fallback. Steep inclines require much shorter pitches. A short pitch traps the wet material into smaller volumetric pockets. It prevents fallback and maintains steady conveying efficiency. Variable pitch designs also help at transition points. They smoothly draw material away from centrifuge discharge chutes without creating bottlenecks.
The housing shape drastically alters functionality. U-troughs feature a flat top and a curved bottom. Tubular housings completely enclose the spiral inside a cylindrical pipe. Each serves distinct operational purposes.
Table 1: U-Trough vs. Tubular Housing Characteristics
| Feature | U-Trough Design | Tubular Design |
|---|---|---|
| Maintenance Access | Excellent. Removable covers expose the entire spiral. | Poor. Requires pulling the spiral from the end. |
| Liner Replacement | Straightforward drop-in replacement. | Difficult. Liners must be segmented or pressed in. |
| Incline Capability | Limited to horizontal or mild inclines (0-15 degrees). | Excellent for steep inclines and vertical applications. |
| Odor & Spill Containment | Good, but relies heavily on gasket integrity. | Superior. Fully enclosed continuous pipe prevents leaks. |
You must size drive motors and gearboxes for the absolute worst-case scenario. Never calculate torque based solely on continuous running conditions. Cold starts present the highest risk of mechanical failure. When the plant shuts down overnight, wet sludge settles into the trough. The material compacts and solidifies. Restarting the unit requires massive breakaway torque. We strongly recommend applying heavy-duty service factors for gear motors. A service factor of 1.5 or higher ensures the gearbox handles sudden load spikes. Undersized drives will simply overheat and trip internal breakers during peak processing events.
Treatment facilities represent highly corrosive environments. Equipment longevity depends entirely on aggressive material specification.
Carbon steel provides excellent structural strength but offers zero natural corrosion resistance. It quickly rusts when exposed to moist biological sludge. Many facilities apply epoxy coatings to carbon steel. Unfortunately, abrasive grit eventually scratches these coatings, leading to rapid degradation. We recommend 304 Stainless Steel for standard municipal applications. It withstands constant moisture effectively. However, certain industrial streams contain high chloride levels or corrosive coagulants. In these cases, you must upgrade to 316L Stainless Steel. 316L provides superior resistance against pitting and highly acidic environments.
Chart 1: Material Application Matrix
| Material Grade | Primary Application Scenario | Vulnerability |
|---|---|---|
| Carbon Steel (Painted) | Dry chemical feeds, temporary setups. | Hydrogen sulfide, moisture, abrasive scratching. |
| 304 Stainless Steel | Standard municipal biosolids, wet screenings. | High chloride concentrations, acidic chemicals. |
| 316L Stainless Steel | Industrial wastewater, harsh chemical environments. | Lower tensile strength compared to hardened alloys. |
Shaftless spirals constantly drag along the bottom of the trough. They require sacrificial liners to protect the stainless steel housing. UHMW (Ultra-High Molecular Weight) polyethylene remains the industry standard. It provides exceptional sliding properties. UHMW significantly reduces friction and lowers power consumption. Facilities often use dual-color UHMW liners. When the top color wears away, the bottom color signals the need for replacement. If the sludge contains extreme levels of sharp grit, UHMW may degrade too quickly. In those extreme scenarios, engineers specify metallic wear bars or hardened ceramic liners to extend operational life.
Modern environmental compliance strictly regulates air quality around treatment plants. Biological sludge emits hydrogen sulfide and volatile organic compounds (VOCs). These gases pose extreme health risks to operators. You must specify specialized sealing mechanisms. Standard loose-fitting covers fail compliance checks immediately. Specify heavy-duty, bolted covers equipped with closed-cell neoprene gaskets. Ensure all inlet and discharge transition points feature flanged, tightly sealed connections. Proper containment prevents localized odors from escaping and protects workers from hazardous gas exposure.
Installing a highly engineered wastewater screw conveyor requires seamless physical integration. Even the most robust machinery fails if it clashes with surrounding infrastructure.
Design teams often forget the operational reality of routine servicing. Drive components require regular oil changes and inspection. UHMW trough liners inevitably require physical replacement. If you wedge the equipment tightly against a concrete wall or tuck it beneath a low ceiling, simple tasks become logistical nightmares. Poorly placed equipment drastically inflates labor hours. Technicians must dismantle surrounding piping just to access the motor. You must specify adequate clearance zones around all major service points during the initial CAD modeling phase.
Transition points represent the highest risk zones for mechanical failure. Centrifuges, filter presses, and rotary drums discharge dewatered material rapidly. If the conveyor inlet cannot handle this sudden volumetric surge, the material bridges. Bridging blocks the chute, forces sludge backward, and eventually shuts down the centrifuge. You must carefully match the discharge chute dimensions with the receiving inlet. Using custom transition hoppers with flared walls prevents material from hanging up. Additionally, ensure electrical integration aligns perfectly. The downstream conveyor must fully activate and reach operating speed before the upstream press begins discharging.
Advise your procurement team to evaluate manufacturers strictly based on technical expertise. Do not accept off-the-shelf bulk handling equipment for complex wastewater tasks. A qualified vendor must demonstrate custom engineering capabilities. They should provide detailed 3D models and structural stress analyses. Demand verifiable case studies from similar municipal or industrial environments. Ask specifically about replacement part availability. When a gearbox fails, you cannot wait six weeks for an overseas shipment. Strong local support and immediate engineering consultation remain crucial for long-term operational success.
An optimal wastewater screw conveyor is never an off-the-shelf purchase. It is a highly customized machine tailored to specific facility constraints and complex sludge profiles. You must prioritize material flow characteristics over basic dimensional requirements. Shaftless designs offer unmatched protection against catastrophic ragging, while precise pitch calculations guarantee steady throughput. Proper metallurgy and robust sealing mechanisms ensure strict environmental compliance and facility safety.
Your immediate next step involves precise data collection. Conduct a comprehensive material flow analysis to determine expected dry solids percentages and grit volumes. Map out your peak load capacities and dimensional constraints. Finally, consult with a specialized conveying engineer. They will help you finalize your technical data sheet, ensuring you request exactly what your facility needs before issuing an RFP.
A: While shaftless designs can operate vertically, efficiency drops significantly past 30 to 45 degrees. Gravity causes wet sludge to slip backward over the flights. To overcome this, steep inclines require specialized short-pitch spirals and fully enclosed tubular housings to maintain volumetric efficiency.
A: The lifespan varies dramatically, typically ranging from one to five years. It depends entirely on the operational duty cycle and the grit content of the sludge. Using two-color wear indicators helps operators visually identify when the liner reaches its safety limit.
A: Handling both presents high risks due to extreme shifts in moisture content. High-moisture primary sludge splashes, while dewatered biosolids turn highly sticky and resistive. You must specify the drive unit, torque rating, and screw pitch for the heaviest, stickiest expected load to prevent sudden motor burnout.
