Views: 0 Author: Site Editor Publish Time: 2026-08-27 Origin: Site
Headworks represent the most critical failure point in any treatment plant. Poor screening lets debris bypass your primary defense. This debris damages downstream pumps. It also causes heavy buildup in digesters. Traditional screens often suffer from severe blinding. They require high maintenance to stay operational. Furthermore, they frequently fail to handle peak wet-weather flows without bypassing entirely.

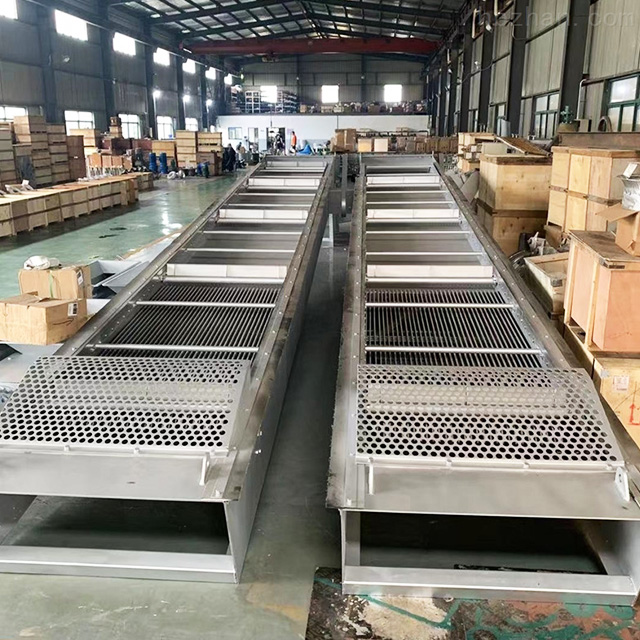

Enter the wastewater step screen. This equipment provides a highly efficient, self-cleaning mechanical solution for fine screening. It lifts debris out of the flow path naturally. The alternating motion prevents the clogs that paralyze static screens.
This guide dismantles the exact mechanics of step screens. We evaluate their performance against traditional alternatives. We also outline the criteria for specifying one for your facility. You will learn how to optimize channel flow, select the right aperture, and protect your downstream assets effectively.
Understanding how step screens separate solids from liquids requires looking at their unique geometry. They do not rely on rakes scraping a stationary grid. Instead, they use a dynamic, moving grid. This design changes how debris interacts with the equipment.
The core mechanism revolves around two sets of lamellae, or step blades. One set remains completely stationary. The other set moves in a continuous, circular motion. We can break this cycle down into distinct phases:
This alternating motion ensures continuous separation. It handles fluctuating flow rates exceptionally well.
The true genius of the step screen lies in the screening mat. As larger debris catches on the blades, it forms a carpet. We call this a biological and inorganic mat. This mat acts as a secondary filter.
The mat traps particles much smaller than the actual slot width. For example, a screen with a 6mm aperture can easily capture 2mm particles once the mat forms. Hair, paper fibers, and fine plastics weave into this carpet. You achieve superior capture rates without needing microscopically small slots.
Static perforated plates often suffer from blinding. Debris wedges into the holes and stays there. Step screens avoid this entirely. The upward lifting motion inherently clears the slots on every single cycle.
As the movable blades pass between the stationary blades, they push debris out of the gaps. The friction between the moving parts acts as a self-cleaning mechanism. You do not need rotary brushes. You do not need high-pressure wash water to keep the lifting surface clear.
Once the debris reaches the top step, it transitions out of the unit. The final rotation pushes the solids over the crest. They usually drop into a discharge flume or a screw conveyor. In modern plants, they drop directly into a screenings wash press. This transition requires no manual intervention. The continuous upward push keeps the discharge area clear of blockages.
Facility managers choose step screens to solve specific hydraulic and mechanical problems. These units offer several operational benefits for modern headworks.
Step screens manage incredibly high flow rates within narrow channel widths. This makes them highly superior to drum screens in tight spaces. Because they install at steep angles, they offer a large active screening area. The water flows through the steps efficiently. You can process more gallons per minute per square foot of channel space.
Submerged moving parts create maintenance nightmares. Grit destroys underwater bearings. Corrosive wastewater eats away at drive chains. Step screens solve this brilliantly.
The design keeps the drive units, motors, and primary bearings completely above the water line. Only the stainless steel lamellae sit in the flow. This drastically reduces wear and tear. Maintenance teams can service the drive mechanisms without draining the channel. This design choice maximizes uptime.
Headloss refers to the drop in water level across the screen. High headloss causes upstream backups. Step screens maintain an excellent hydraulic profile. Even during peak solids loading, the continuous lifting motion clears the flow path.
As the water level rises, it triggers the screen to operate faster. This dynamic response keeps headloss within acceptable limits. The flow moves smoothly through the facility, preventing hydraulic bottlenecks.
You cannot overstate the importance of downstream protection. Step screens provide exceptional sewage solids removal. They stop rags, hair, and plastics from entering sensitive areas.
By protecting these assets, you ensure the entire biological treatment process runs without interruption.
Engineers often debate between traditional bar screens and step screens. Both serve important roles. However, they excel in very different applications. Understanding their differences helps you specify the right equipment.
Screening Technologies Comparison Chart
| Feature | Automatic Bar Screening | Wastewater Step Screens |
|---|---|---|
| Typical Aperture | >6mm (Coarse to Medium) | 3mm – 6mm (Fine) |
| Capture Method | Static bars scraped by rakes | Alternating lifting lamellae |
| Mat Formation | Minimal (rakes clear the grid) | High (debris forms a filter carpet) |
| Installation Angle | 70° to 90° vertical | 50° to 75° incline |
| Best Suited For | Heavy, coarse preliminary debris | High-efficiency fine screening |
Traditional automatic bar screening usually features apertures larger than 6mm. Rakes drag across static bars to remove debris. Unfortunately, this design is prone to "stapling." Rags wrap around the bars. The rakes push them deeper into the slots instead of removing them.
Step screens operate differently. They use fine apertures, typically 3mm to 6mm. Because they utilize the mat effect, they excel at trapping hair and flushable wipes. The alternating motion pulls fibrous materials up and out. It prevents the stapling effect entirely.
Installation requirements differ significantly. Bar screens often require vertical drops and deep channels. Modifying civil works for them takes time and resources.
Step screens offer greater flexibility. They drop directly into existing channels at steep angles. You usually install them between 50 and 75 degrees. This incline maximizes the screening area in shallow channels. It requires minimal civil modifications. You can easily retrofit an aging plant with step technology.
Consider the durability of the components. Bar screens rely on rake teeth. These teeth snap when they hit heavy rocks or thick branches. Replacing individual teeth takes time.
Step screens experience different wear patterns. The lamellae wear evenly across the entire surface. Because they lift incrementally, they handle heavy loads better. However, they do not handle large boulders well. You must ensure large rocks settle out before hitting the step screen.
Use bar screens for preliminary, coarse debris removal. Place them at the very front of the plant to catch logs and large stones. Use step screens immediately afterward for high-efficiency fine screening. This dual approach guarantees optimal water quality for downstream biological processes.
Choosing the right step screen requires careful engineering. You cannot just pick a model off a shelf. You must evaluate specific criteria to match your plant's unique flow dynamics.
Municipal sewage creates a highly corrosive environment. Hydrogen sulfide gas eats standard metals quickly. Material selection is non-negotiable.
You must specify 304 or 316L stainless steel for all wetted parts. If your plant processes industrial wastewater with high chlorides, always choose 316L. It resists pitting corrosion better. Ensure all components comply with local environmental corrosion standards. Proper material selection prevents premature structural failure.
Proper sizing dictates screening success. You must calculate the slot width and channel depth carefully. You need to handle peak wet-weather flows. However, you must avoid oversizing the unit.
If you oversize a step screen, the flow velocity drops too low during average days. The debris mat will not form properly. Without the mat, fine particles slip through the slots. You compromise your wastewater pretreatment goals. Work closely with manufacturers to find the precise balance between hydraulic capacity and mat formation.
The linkage system drives the movable blades. This mechanism must withstand continuous duty cycles. Evaluate the linkage design rigorously.
Standard models work well for light municipal flows. However, heavy debris loads demand specialized equipment. For instance, a JT step screen features a highly robust linkage design. It optimizes the lifting geometry specifically for high-debris environments. The stronger the linkage, the less chance you have of mechanical binding during a storm surge.
A step screen pulls wet, odorous debris from the water. You must manage this waste efficiently. Assess how the screen integrates with downstream equipment.
The discharge chute must align perfectly with screenings wash presses or compactors. Wash presses reduce the organic content in the debris. Compactors squeeze out excess water. This integration reduces the final volume of disposed solids. It also minimizes foul odors in the headworks building.
No technology operates flawlessly without proper oversight. Step screens provide immense value, but they come with specific vulnerabilities. Acknowledging these risks helps you plan proper maintenance routines.
High concentrations of fats, oils, and grease (FOG) present the biggest challenge. Cold water causes grease to congeal. It sticks to the stainless steel lamellae.
Over time, excessive FOG can blind the screening mat completely. The grease glues the debris to the blades. The self-cleaning friction cannot break through thick grease layers. To mitigate this, plants with high FOG loads must install hot water wash systems. Spraying hot water at the discharge point melts the grease. It keeps the lamellae functioning smoothly.
Channel hydraulics directly impact performance. If the flow velocity drops too low, heavy grit settles before it reaches the screen. It accumulates at the bottom step.
This grit buildup creates a wedge. As the movable blades cycle downward, they grind against the accumulated sand and gravel. This causes severe mechanical binding. It bends the lamellae and stresses the motor. You must design the approach channel to maintain sufficient velocity. Keep the grit suspended until it passes through or gets lifted by the steps.
Despite having minimal submerged moving parts, step screens require consistent care. Implement strict routine maintenance protocols.
Following these simple steps guarantees continuous, reliable operation.
A step screen stands as an optimal choice for plants requiring high-capture fine screening. It delivers excellent solid-liquid separation while keeping critical moving parts out of the corrosive wastewater. The self-cleaning mechanism prevents blinding, and the filter mat traps exceptionally fine particles. It protects your downstream biological processes better than many static alternatives.
If you plan to upgrade your headworks, take immediate action. First, audit your current bypass frequencies during storm events. Second, measure your existing channel dimensions accurately. Finally, request computational fluid dynamics (CFD) or flow modeling from manufacturers. Reviewing these models before shortlisting equipment ensures you select a unit perfectly matched to your hydraulic profile.
A: The slot width usually ranges from 3mm to 6mm. The exact size depends heavily on your specific pretreatment standards and the downstream equipment you need to protect.
A: The alternating step motion pulls fibrous materials upward continuously. This prevents the "stapling" effect often seen in traditional bar screens, ensuring rags do not wrap around and block the grid.
A: No, the core lifting mechanism is mechanically self-cleaning via friction. However, operators often add hot wash systems at the discharge point to reduce odors and remove heavy grease accumulation.
A: A JT step screen is a specialized configuration known for its highly robust linkage system. It features optimized lifting geometry designed specifically to handle high-debris loads and continuous heavy-duty cycles without mechanical binding.
