Imagine running a wastewater treatment plant where a rogue log destroys a million-dollar pump. That is where a bar screen steps in to protect your facility. This industrial component serves as the absolute first line of defense against large solids and debris. In this guide, you will learn about the different types, working principles, and critical operational benefits of this essential technology.
● A bar screen is the foundational mechanical filter at the headworks of wastewater treatment plants, protecting downstream equipment from severe clogging.
● Selecting between a coarse bar screen and a fine bar screen depends entirely on your required opening size and the sensitivity of secondary treatment systems.
● Automated mechanical raked systems significantly lower manual labor costs while maintaining continuous, reliable hydraulic flow during peak storm events.
● Constructing equipment with high-grade stainless steel ensures long-term resistance to highly corrosive gases and abrasive grit environments.
A bar screen is a mechanical filter used to remove large objects from influent wastewater streams. It consists of a collection of parallel vertical or inclined steel bars. These bars span the entire width of the open influent channel. As raw sewage flows through this matrix, the metal bars act as a physical barrier. They intercept massive debris while allowing the liquid wastewater to pass through unhindered. This primary physical separation process occurs before the water undergoes any chemical or biological treatment.
This equipment fulfills a three-fold mission at the entrance of every modern treatment facility. First, it provides critical mechanical protection for downstream pumps, valves, and piping networks. Second, it separates non-biodegradable solids from the organic waste stream early in the process. Third, it helps maintain a steady, regulated hydraulic flow. By preventing massive blockages at the headworks, it ensures that subsequent treatment stages receive a manageable and predictable volume of water.
Raw municipal and industrial wastewater carries a diverse mix of solid debris that threatens infrastructure. Natural items include large tree branches, leaves, rocks, and surface runoff debris. Modern urban waste introduces even tougher challenges. The bars routinely trap flushed wet wipes, plastic bottles, rags, wood fragments, and sanitary products. If left unchecked, these synthetic materials bind together and create massive obstructions within the treatment system.
This equipment occupies the absolute headworks of a wastewater treatment plant layout. It represents the very first physical structure that raw influent encounters upon arrival. It is positioned upstream of the grit removal chambers and primary clarification tanks. Placing it at the front of the sequence protects every single subsequent treatment phase from mechanical interference and solid accumulation.
Skipping or neglecting this initial screening phase leads to immediate operational nightmares. Heavy objects easily destroy expensive pump impellers and tear aeration membranes. Thick bundles of rags and wet wipes create tight blockages inside pipes, which leads to raw sewage backups. Repairing these systems requires emergency plant shutdowns, intensive manual labor, and thousands of dollars in avoidable equipment replacement costs.
Understanding specific industrial metrics helps operators manage their screening systems effectively.
● Clear Opening Size: The physical distance between two parallel bars, which determines the particle size captured.
● Approach Velocity: The speed at which the incoming wastewater moves toward the face of the bars.
● Head Loss: The drop in water level across the screen, which indicates the level of debris accumulation.
● Discharge Height: The elevation to which captured screenings are lifted for disposal.
Technical Metric | Definition | Operational Impact |
Clear Opening | Distance between parallel bars | Dictates filtration efficiency |
Approach Velocity | Speed of incoming wastewater stream | Prevents early solids settling |
Head Loss | Water level drop across the barrier | Triggers the cleaning cycle |
The entire filtration process relies on natural hydraulic flow and gravity. Raw wastewater enters an open concrete channel leading directly to the metal barrier. The force of the moving water pushes the liquid through the clear openings between the parallel bars. Meanwhile, any solid object larger than the bar spacing gets trapped against the upstream face of the structure. The continuous flow of water holds the debris in place against the vertical bars until the cleaning mechanism activates.
Trapped solids must be removed regularly to prevent channel overflows. In traditional low-volume setups, operators use a manual hand rake to scrape accumulated debris upward along the bars. Modern industrial facilities utilize automated mechanical rakes instead. These motorized systems feature rake tines that fit perfectly between the bars. The mechanical rake travels down the screen, engages the trapped debris, and carries it up to the top of the channel automatically based on pre-set timers or differential pressure sensors.
Once the mechanical rake reaches the top of its path, a wiper mechanism clears the debris from the tines. The separated solids drop into a collection hopper or a screw conveyor system. From there, the wet screenings travel through a specialized dewatering press. This unit compacts the waste, squeezes out excess water, and returns the extracted liquid to the main treatment stream. The dried, compacted solids are then dropped into a dumpster for efficient transport to a local landfill.
Coarse systems feature large clear openings that generally measure between 6mm and 50mm or more. These rugged structures handle the heaviest, most abusive debris entering the facility. They are built to withstand severe physical impacts from logs, rocks, and large plastics. Most municipal plants position a coarse unit at the very front of their headworks to handle raw, unscreened influent directly from city sewer lines.
Fine systems utilize much tighter clear openings that measure less than 6mm. These units capture smaller problematic items like hair, paper fibers, and tiny plastic fragments. They provide precise filtration to protect highly sensitive secondary treatment technologies downstream. For example, facilities operating Membrane Bioreactors (MBRs) or Moving Bed Biofilm Reactors (MBBRs) rely on fine screens to prevent particles from fouling or puncturing their expensive membranes.
High-efficiency wastewater treatment plants rarely rely on a single screening size. Instead, they implement a highly effective multi-stage screening strategy. The system places a heavy-duty coarse unit at the absolute entrance to catch large objects. A fine unit follows immediately behind it to capture the remaining small particles. This dual-stage design maximizes overall solids removal while preventing the fine screen from becoming overwhelmed and blinded by massive debris.
Manual units feature a simple, non-motorized design with very low initial capital costs. They require no electrical power and have virtually no moving parts to maintain. However, they demand constant manual labor from operators who must physically scrape the bars clean with hand tools. Because of this high labor requirement, plants restrict their use to very small facilities, isolated overflow bypass channels, or emergency backup systems during power outages.

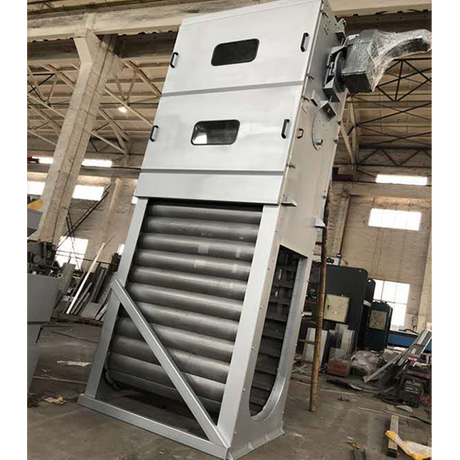

Mechanically raked systems represent the standard choice for modern municipal and industrial installations. These units are fully automated and divided into front-cleaned and back-cleaned designs. Front-cleaned models use rakes that engage the bars on the upstream side, while back-cleaned models keep their mechanical chains and sprockets behind the bars, away from direct contact with raw debris. They handle massive water volumes continuously without requiring human intervention.
Rotary and drum-style systems feature a unique curved or cylindrical filtering surface that rotates continuously through the wastewater channel. As the screen spins, it lifts the trapped solids out of the flow and deposits them into an internal collection trough. These specialized systems fit perfectly into industrial treatment setups, such as food processing or chemical manufacturing facilities, where space is highly constrained and solids loading remains consistently high.
Maintaining the correct hydraulic velocity inside the influent channel requires a delicate operational balance. The approach velocity must remain high enough to keep heavy grit and sand suspended in the moving water rather than settling to the bottom of the channel before the screen. However, the velocity must not rise too high, or the intense hydraulic force will push flexible debris directly through the parallel bars, ruining the filtration process.
As debris accumulates on the face of the bars, it blocks the open area and restricts water flow. This restriction causes the water level on the upstream side to rise while the level on the downstream side drops. The resulting height difference is known as head loss. Automated control panels use ultrasonic level sensors to measure this differential pressure. When the head loss reaches a specific threshold, the panel triggers the mechanical rake cycle to clear the blockage.
Heavy rainfall and flash storms cause sudden hydraulic surges that flood municipal sewer systems. Headworks equipment must be sized correctly to handle these peak influent events without overflowing. If a system is undersized, the sudden rush of stormwater will blind the bars instantly. This causes severe upstream flooding or forces raw, unscreened sewage to bypass the treatment plant entirely, which violates environmental regulations.
Raw municipal sewage creates an incredibly hostile environment filled with moisture and highly corrosive hydrogen sulfide gas. To survive these conditions, heavy-duty industrial equipment relies on premium stainless steel construction. Grade 304 stainless steel offers excellent corrosion resistance for standard municipal headworks. For highly aggressive environments or facilities dealing with industrial chemical inputs, Grade 316 stainless steel is preferred due to its superior chemical resistance.
Certain specialized industrial applications require materials beyond standard stainless steel grades. Chemical processing plants and sea-water desalination facilities often utilize duplex stainless steels or advanced epoxy-coated metals to handle extreme acidity or high chloride concentrations. Some light-duty components or fine screening links also incorporate heavy-duty polymers that resist chemical wear while reducing the overall weight of the moving parts.
The moving parts of an automated screening unit operate under grueling conditions, often partially or fully submerged in water filled with abrasive grit. Manufacturers use hardened steel alloy chains, heavy-duty sprockets, and sealed waterproof bearings to minimize mechanical wear. Protecting these drive components prevents premature chain stretching, sprocket tooth wear, and sudden drive motor failures, ensuring the system runs reliably year after year.
A high-quality headworks screening system is the fundamental shield that ensures the operational efficiency of your entire wastewater facility. Selecting the correct bar screen setup prevents catastrophic downstream pump damage and eliminates costly emergency maintenance shutdowns. For reliable, long-term plant protection, AOTENG delivers heavy-duty, innovative automated screening solutions designed to withstand the harshest industrial and municipal environments, helping your facility optimize its treatment budget effortlessly.
A: A bar screen is used to catch and remove large solid objects from influent wastewater streams to safeguard downstream pumps and piping from damage.
A: An automated bar screen utilizes motorized rakes to scrape trapped debris upward off parallel metal bars based on pre-set timers or water level changes.
A: Head loss monitoring measures debris accumulation across the bar screen, preventing channel overflows by automatically triggering the cleaning cycle when levels rise.
A: A coarse bar screen removes massive debris using openings larger than 6mm, while a fine bar screen captures smaller particles using openings under 6mm.
